Goods Lift Thetford

Goods Lift Thetford

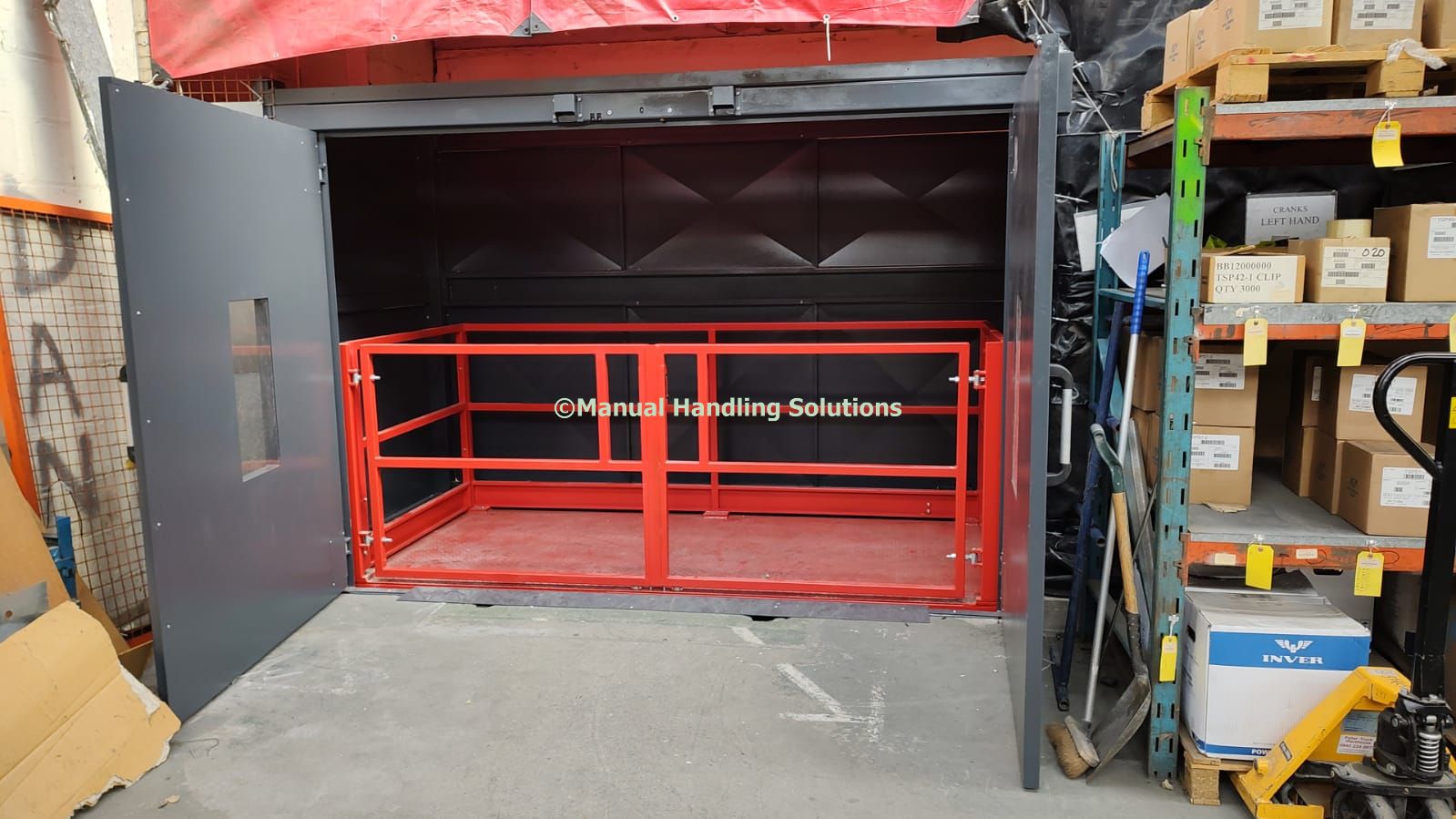

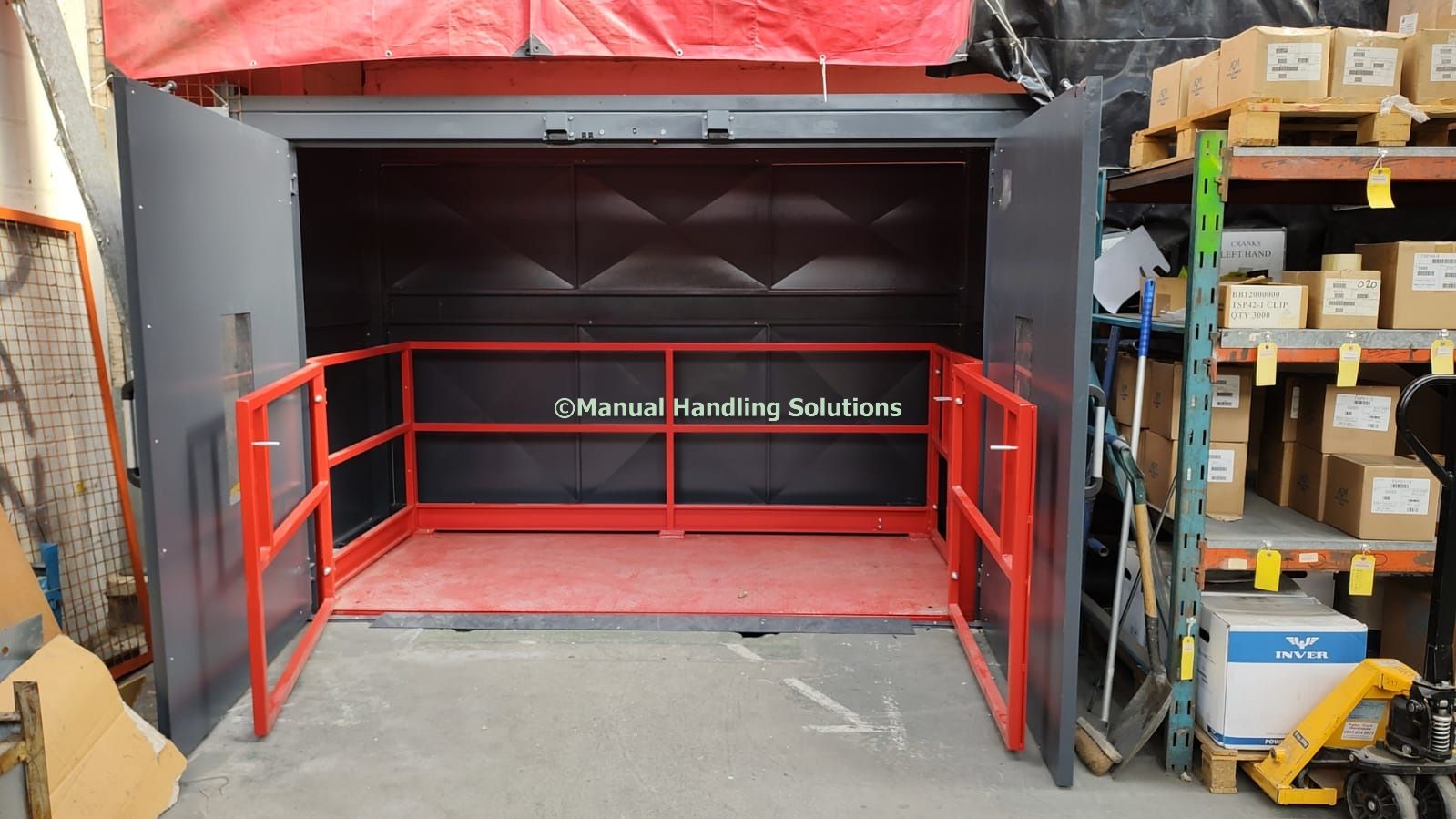

2000kg Scissor Table, two stop Goods only Lift with 90° loading installed Burrell Way, Thetford, Norfolk, IP24 3QU. Scissor Goods Lift with finished floor level 3707mm and a platform size 2990mm x 1400mm fitted with 1100mm high handrails with kick plate on the non-loading sides. Lower-level short side fitted with single opening gate, upper-level being twin opening both interlocked finished in Traffic Red RAL 3020. The scissor lift was installed in an existing 700mm pit from a previous installation.

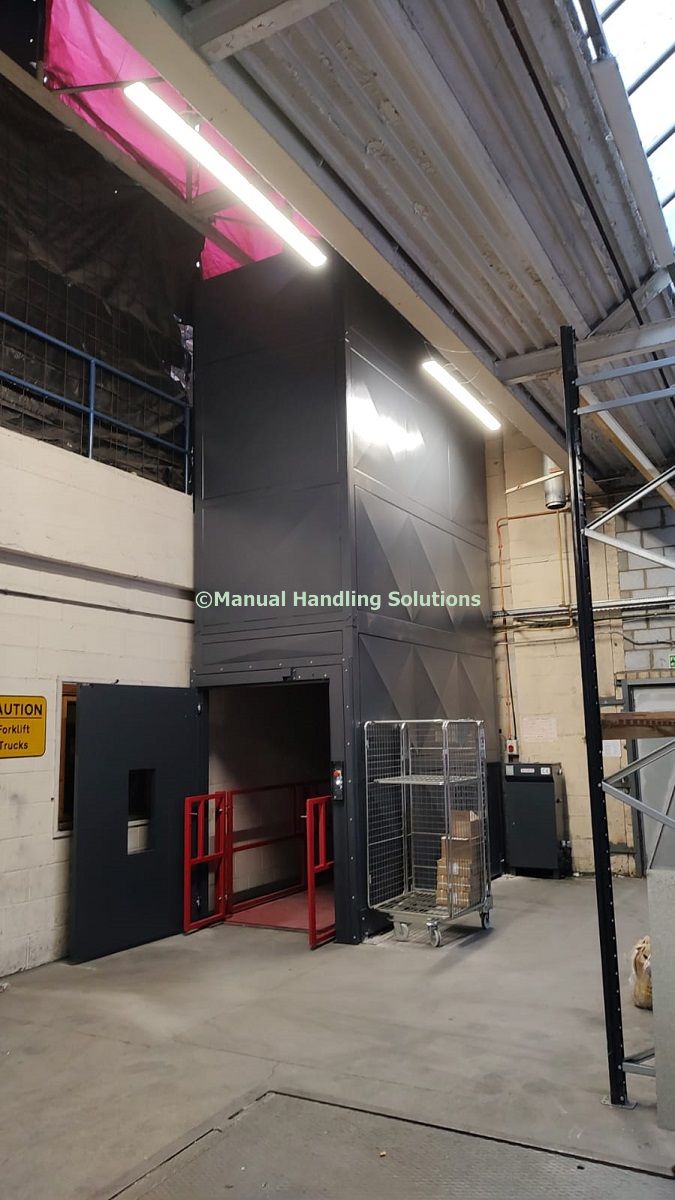

The goods lift is a self-supporting lift structure manufactured from 120mm x 120mm box section steel with clad infilled panels Grey RAL 7024. Goods lift fitted with 2000mm high single opening door at lower-level and double loading doors at upper-level cladded with Perspex viewing panels, doors fitted with interlock system to ensure that the loading gates can only operate in conjunction with the lift controls and the lift will be prevented from operating if loading gates on any level are not fully closed. The overall height of the upper-level structure is 2325mm. “Press to Go” one touch controls with emergency stop at both levels fitted as standard.

Goods Lift platform fitted with shoot bolts to stabilise the platform and remove any hydraulic ‘bounce’ when fully loaded at the top floor. To prevent damage from pallet trucks and FLT the power pack and hydraulic system is in enclosed in a lockable steel cabinet size D500mm x L500mm x H1300mm. Electrics 3 phase, 400v, 4Kw control voltage 24-volt IP55.

General Specification

- - Emergency lowering system when power cut off
  - Prewired control box included magnetic starter and overload fuse
  - Upper-level travel limit switch and overload relief valve
  - Hydraulic cylinders feature emergency velocity fuse if line breaks
  - Control points fitted to both ground and upper floor levels
  - The hydraulic power pack and electrical system housed separately at ground level
  - The raised height of the lift governed by a switch system to ensure that the lift platform parks level with upper floor
  - CE plated and built-in compliance with the Machinery Directive 2006/42/EC
  - Installation; Advanced Air, Burrell Way, Thetford, Norfolk, IP24 3QU
