Goods Lifts Feltham

Goods Lifts Feltham

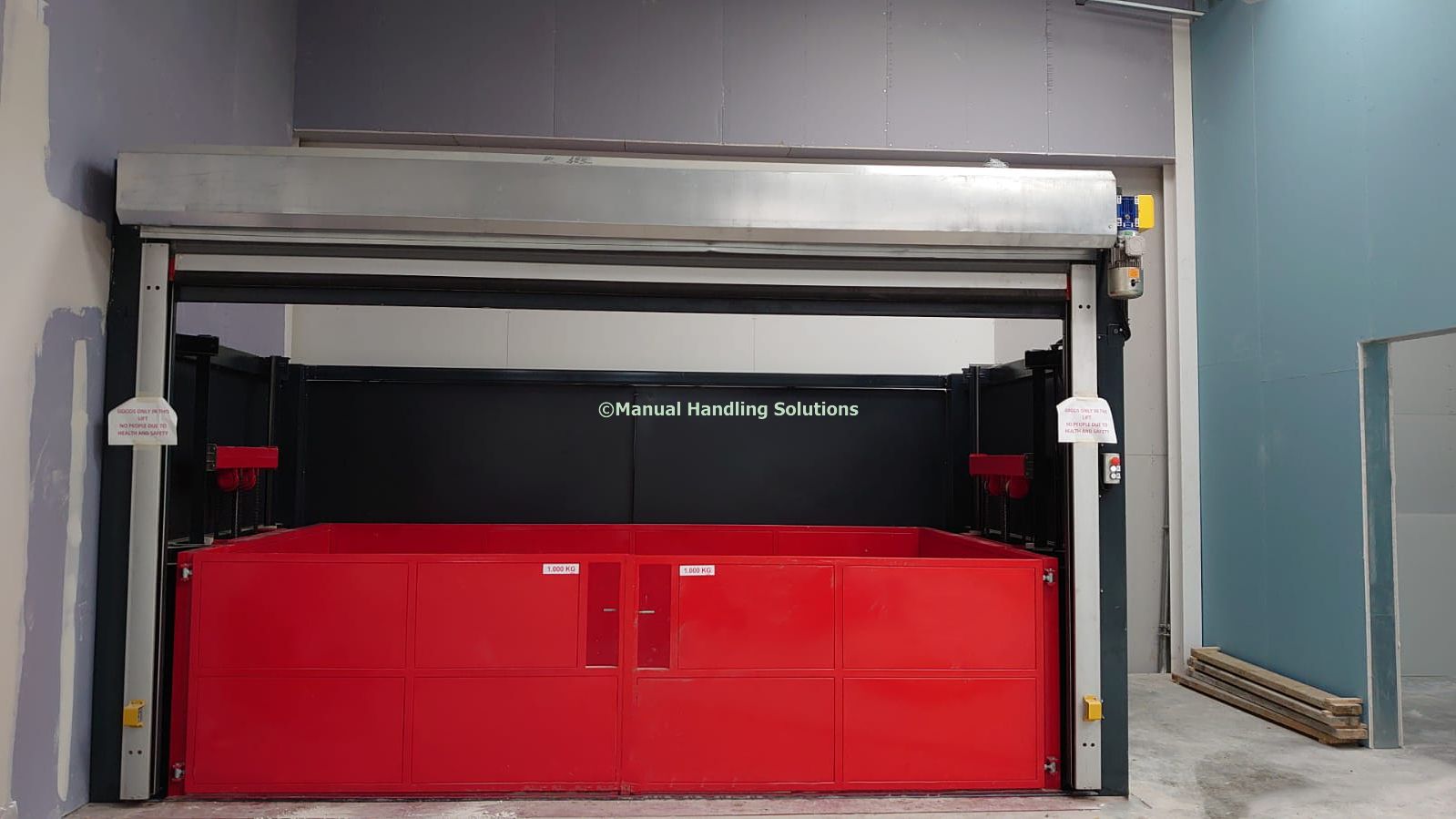

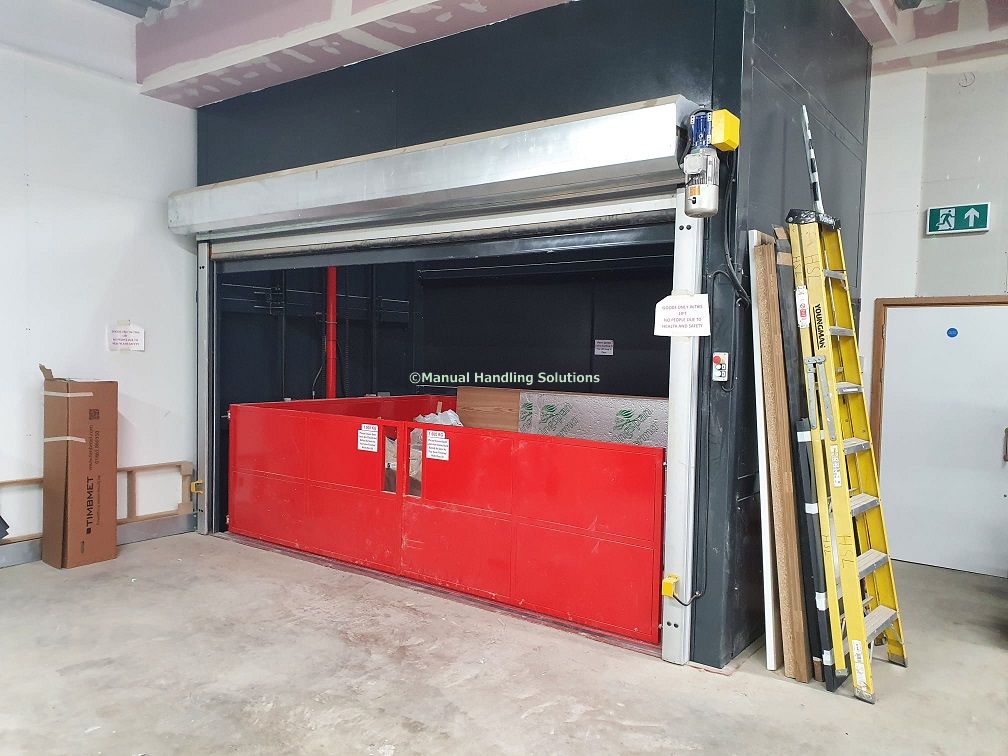

2 stop twin mast 1000kg hydraulic Goods only Lift installed Browells Lane, Feltham, Middlesex TW13 7EQ with a finished floor level 4400mm and platform size 4000mm x 2500mm. Platform fitted 3 sides with 1100mm high infilled panels on the non-loading sides and 1100mm high twin opening interlocked gates on loading side finished in Red RAL 3020. Goods lift recessed in a 240mm deep pit for flush entry onto the lift.

A self-supporting lift structure manufactured from 120mm x 120mm box section steel with clad infilled panels Grey RAL 7024. Goods only lift fitted with 2200mm high hybrid roller shutter doors at both entrances and these are fitted with interlock system to ensure that the platform loading gates can only operate in conjunction with the lift controls and the lift will be prevented from operating if loading gates at any level are not fully closed. The overall height of the upper-level structure is 2800mm.

Goods Lift fitted with safety shoot bolts which allow for the operator to enter onto the lift platform safely while the lift is docked at the upper level, the shoot bolts also eliminate any deflection in the platform during loading and unloading. “Press to Go” one touch controls with emergency stop at both entrances and levels fitted as standard.

To prevent damage from pallet trucks and forklift trucks the power pack and hydraulic system is in enclosed in a lockable steel cabinet size D500mm x L500mm x H1300mm. Electrics 3 phase, 400v, 7.5Kw control voltage 24-volt IP55.

General Specification

- - Emergency lowering system when power is cut off.
  - Prewired control box included magnetic starter and overload fuse.
  - Upper-level travel limit switch and overload relief valve
  - Hydraulic cylinders feature emergency velocity fuse if line breaks.
  - Control points are fitted to both ground and upper floor levels.
  - The hydraulic power pack and electrical system housed separately at ground level.
  - The raised height of the lift is governed by a switch system to ensure that the lift platform parks level with upper floor.
  - Installation; Browells Lane, Feltham, Middlesex TW13 7EQ

Warehouses often require flexible and cost-effective solutions to move goods and materials from ground floors to raised storage platforms and mezzanine floors. The range of mezzanine goods lifts from Manual Handling Solutions provides the ideal solution to your vertical movement needs. Widely used for use in all types of buildings such as: Stores, Hotels, Warehouses, Factories, Supermarkets, Shopping areas, Construction, Medical, Distribution Facilities and Hospitality. Mezzanine lifts facilitate the increased use of vertical space in storage areas and make it easy to safely and quickly transfer goods from first floor level to a raised floor or multi floor landings. Goods lifts can also be installed along the edge of the raised floor or in a specially cut aperture within in the mezzanine.

Manual Handling Solutions continues to build its reputation by delivering on time and on budget and by paying attention to every detail. If you have any questions about our mezzanine goods lifts or would like assistance with finalising your goods lift design, MHS are available to answer any queries you may have. We are happy to talk you through our diverse product range of bespoke goods lifts and how they can help with the ups and downs of your business. Contact us today to obtain a free custom quote or general advice.

Goods Lifts covering; Longford, Isleworth, Egham, Sunbury-on-Thames, Hampton, Hayes, Harlington
